适用范围Scope of application

化肥、制糖等行业的颗粒料全自动定量包装。

Automatic quantitative packaging of granular materials such as fertilizer and sugar making.

功能特点Funcational characteristics

1、称量、上袋、开袋、下料、缝包等工艺流程完全自动化。

The process flow of weighing,bag loading, bag opening, blanking,bag sewing, etc. Is fully automated.

2、软质敞口包装袋亦适用。

It is also applicable to soft and open packing bags.

3、备袋库有5个工位,可一次存放400-500条袋子。

The bag storage has 5 stations,which can store 400-500 bags at a time.

4、紧密型夹袋设计,多除尘口合理布局，避免扬尘。

Compact bag design,reasonable layout of multiple dust removal ports to avoid dust.

5、友好的人机操作界面,操作简单便捷。

Friendly man-machine interface,simple and convenient operation.

6、采用伺服电机驱动，安全可靠,快速稳定。

Driven by servo motor, safe,reliable,fast and stable.

7、具有故障自动报警功能，根据故障提示可快速排除。

With the function of automatic fault alarm, it can be quickly eliminated according to the fault prompt.

8、可选配远程诊断功能，易于维护。

Optional remote diagnosis function,easy to maintain.

技术参数Technical parameters

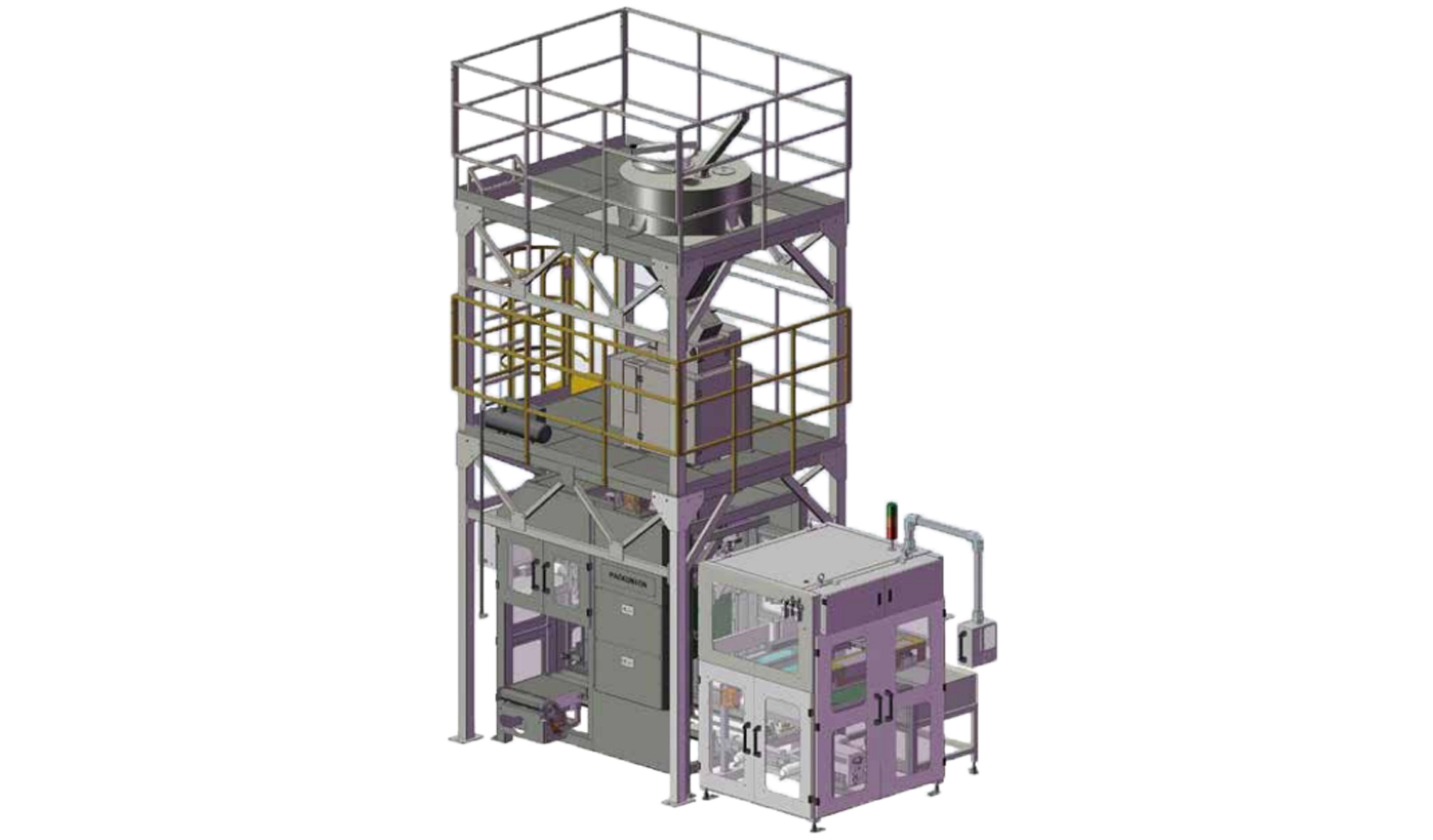

1、型号：FAG-850B

Model：FAG-850B

2、包装范围(kg)：25-50

Packing range(kg)：25-50

3、包装速度(bag/h)：600~850*

Packing speed(bag/h)：600~850*

4、称重精度：±0.1%~±0.2%

Weighing precision：±0.1%~±0.2%

5、包装袋规格(mm)：袋宽-500~600;袋长-800~1000

Bag specifications(mm)：Bagwidth-500~600; Baglength-800~1000

6、环境温度：0~40℃

Ambient temperature：0~40℃

7、电源,耗电：AC380V 50Hz,15kW

Power supply,power consumption：AC380V 50Hz,15kW

8、气源,耗气：0.5~0.7MPa,45Nm³/h

Gas source,gas consumption：0.5~0.7MPa,45Nm³/h

9、外形尺寸(mm)长X宽X高：4614x4665x4420

Overall dimension(mm)L×W×H：4614x4665x4420

-取决于包装物料的具体特性和包装规格。

Depend on the specific characteristics of packaging materials and packaging specifications.
